When law enforcement and security teams depend on protective equipment, every component matters. Anti Riot Shield Parts form the backbone of a reliable defensive barrier, and selecting the right components can mean the difference between a shield that performs under stress and one that fails at a critical moment. Galaxy has spent years refining each part to meet the demands of riot control, crowd management, and high-risk patrol operations.
Galaxy anti riot shield parts are engineered as modular replacements, which means individual components can be swapped without replacing the entire shield. This reduces operational downtime and keeps maintenance budgets predictable. The main parts include the shield body, viewport, handle assembly, arm support, edge trim, fasteners, and optional lighting brackets. Each part is produced under strict tolerance controls and tested against impact, abrasion, and chemical exposure standards.
The shield body is the primary structural element. Galaxy uses a proprietary polycarbonate laminate that balances rigidity with slight flex to absorb blunt impacts. Standard thicknesses range from 3 mm to 6 mm, with 4 mm being the most common for riot applications. The body is thermoformed to create a curved profile that deflects projectiles and reduces direct force transfer to the user. Edge retention is reinforced during molding to prevent delamination.
The viewport is a clear or tinted polycarbonate insert that provides visibility while maintaining protection. Galaxy viewports are available in three sizes: 200 mm x 100 mm, 250 mm x 150 mm, and 300 mm x 200 mm. Each viewport features a scratch-resistant coating on the exterior and an anti-fog treatment on the interior. The thickness is typically 4 mm or 5 mm, and the edges are sealed with a flexible gasket to prevent moisture ingress.

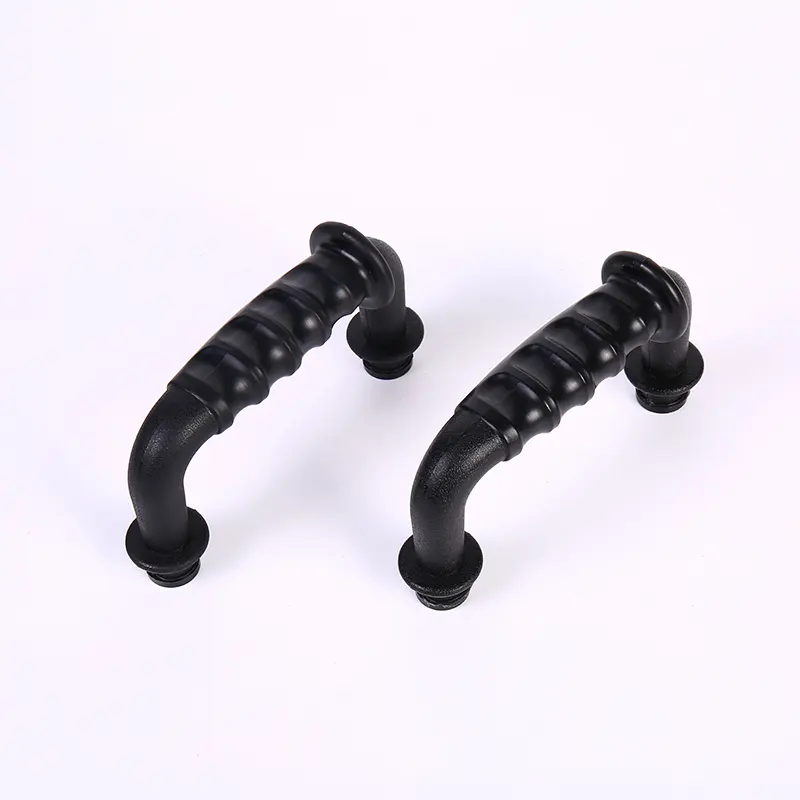

The handle assembly includes a reinforced polymer or aluminum backing plate, a steel or composite handle bar, and a non-slip rubber grip. Galaxy offers two configurations: a single horizontal handle for basic shields and a dual-handle setup with an additional vertical stabilizer for heavier models. The backing plate distributes load across a wider area of the shield body, reducing stress cracks around mounting holes. All hardware is countersunk to maintain a smooth exterior surface.

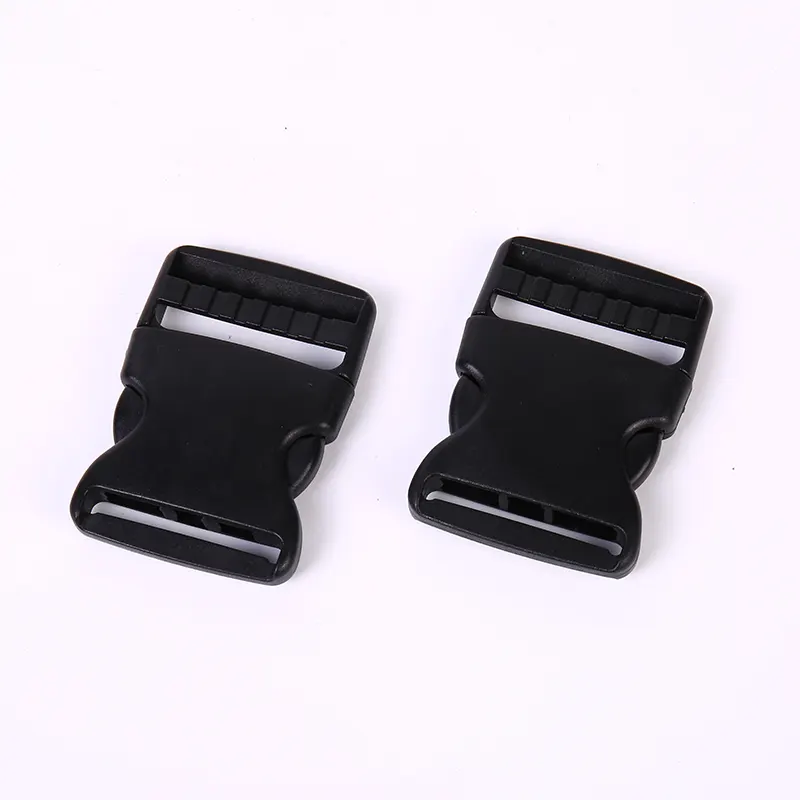

Arm support parts consist of a padded arm brace, adjustable straps, and quick-release buckles. The arm brace is made from closed-cell foam wrapped in a wipe-clean vinyl cover. Straps are woven nylon with a tensile strength of 1,200 kg. The quick-release mechanism allows the operator to drop the shield in less than one second if the shield becomes pinned or compromised. Galaxy arm supports are ambidextrous and can be mounted in either vertical or horizontal orientation.
Edge trim is a replaceable rubber or PVC profile that covers the perimeter of the shield body. It serves two purposes: protecting the shield edge from chipping and reducing the risk of injury during close contact. Galaxy edge trim is available in black or high-visibility yellow. The profile is designed with internal ribs that grip the shield edge without adhesive, which makes field replacement fast and tool-free.
All Galaxy anti riot shield parts use corrosion-resistant stainless steel fasteners. Standard thread sizes include M5, M6, and M8, depending on the component. Nuts are self-locking nylon insert types to prevent loosening under vibration. Flat washers and rubber isolators are included in each replacement kit to maintain proper load distribution and reduce noise during movement.
Galaxy anti riot shield parts are packaged in moisture-resistant poly bags with desiccant packs. Larger shield bodies are wrapped in foam sheets and placed in reinforced cardboard cartons. Each carton includes a packing slip with part numbers, quantities, and the lot number. Standard lead times for in-stock parts are three to five business days. Custom parts require four to six weeks depending on the volume and complexity of the specification.
Galaxy has built its reputation on producing anti riot shield parts that hold up under real-world conditions. The company maintains an in-house testing laboratory that simulates crowd surges, thrown projectiles, and chemical exposure. Every component is designed to be replaced quickly by a single technician using basic hand tools. This focus on serviceability reduces total cost of ownership and keeps shields in the field longer. Galaxy also provides technical documentation and replacement guides for all parts, ensuring that agencies can train their armorers effectively.
