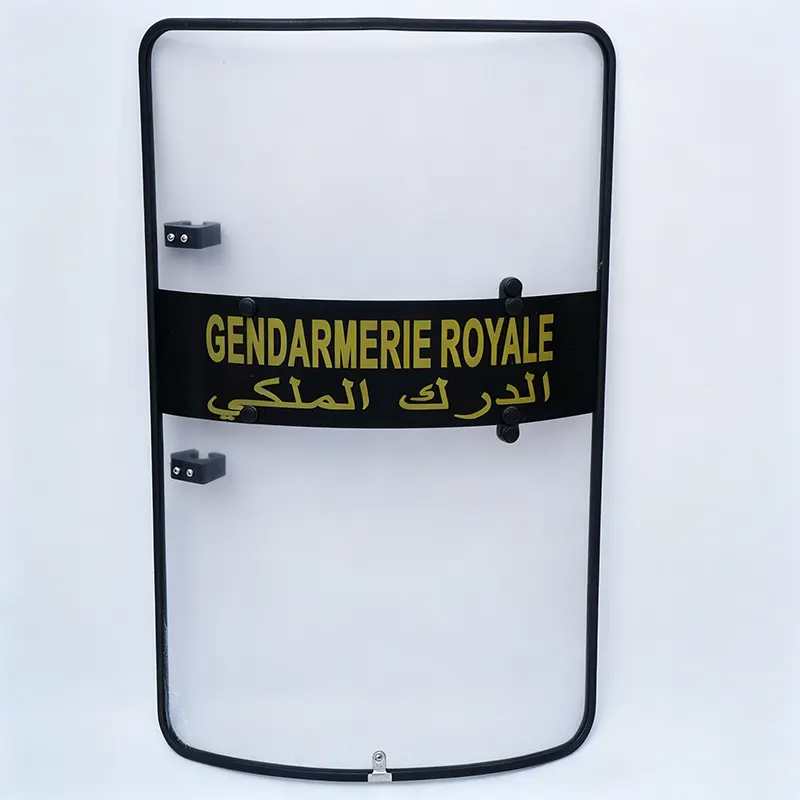

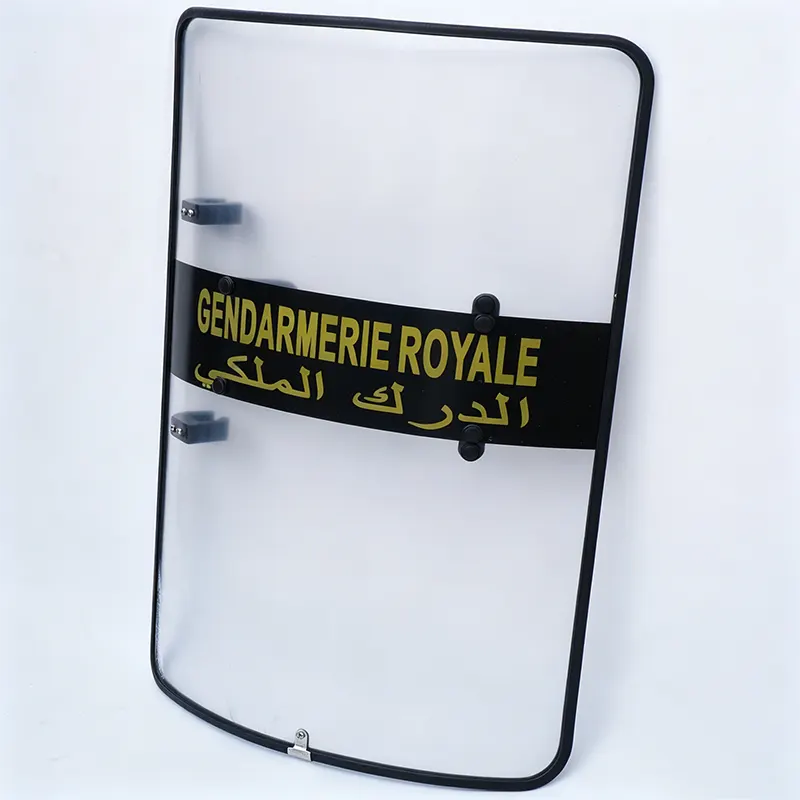

Developed for team formation defense and routine security tasks, this Bordered Anti Riot Shield targets common issues of basic polycarbonate shields: fragile edges prone to chipping under impact, small coverage leaving gaps in team formation, and limited view affecting situation judgment. Different from compact circular shields for mobile use, its rectangular full transparency design fits coordinated formation operations, ensuring seamless team defense and unobstructed forward observation.
The shield adopts curved integral structure with reinforced edge design. The 3.5 mm thick polycarbonate panel delivers reliable impact resistance against blunt strikes and thrown objects. The metal wire embedded PVC rubber border reinforces the edge position, reducing chipping risk under impact and eliminating sharp edge hazards. With over 80 percent light transmittance, the full transparent panel ensures clear forward observation. The dual grip design with adjustable forearm strap enables stable single hand hold, and side baton mounting clips allow quick access to auxiliary equipment.
|
Parameter Item |
Specification |
|
Main Shield Material |
Polycarbonate, also known as PC |
|
Border Material |
Reinforced PVC rubber with embedded metal wire |
|
Overall Dimensions |
900 mm by 600 mm |
|
Plate Thickness |
3.5 mm |
|
Light Transmittance |
80 percent minimum |
|
Unit Net Weight |
Approximately 3.8 kg |
|
Quantity Per Carton |
4 pieces |
|
Outer Carton Dimensions |
95 cm by 65 cm by 35 cm |
|
Carton Gross Weight |
Approximately 17 kg |
1. Metal wire embedded PVC rubber border reinforces edge impact resistance, reduces chipping and fragment risk under strikes, and improves edge wear durability.
2. 3.5 mm integrally formed polycarbonate panel with curved surface disperses impact kinetic energy evenly, delivering stable impact resistance for long term use.
3. 900 mm by 600 mm large coverage protects core torso area, and rectangular shape enables seamless side by side formation connection to build continuous shield wall.
4. 80 percent minimum light transmittance full transparent panel provides unobstructed forward vision for clear situational observation.

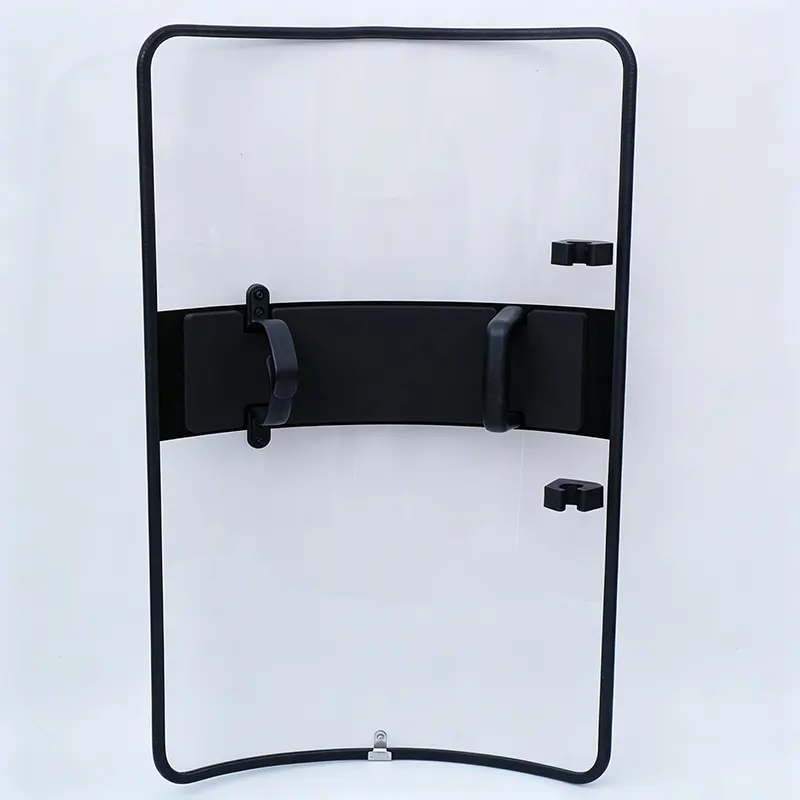

5. Dual ergonomic grip with adjustable forearm strap distributes holding force evenly, reduces arm fatigue during long duty shifts.

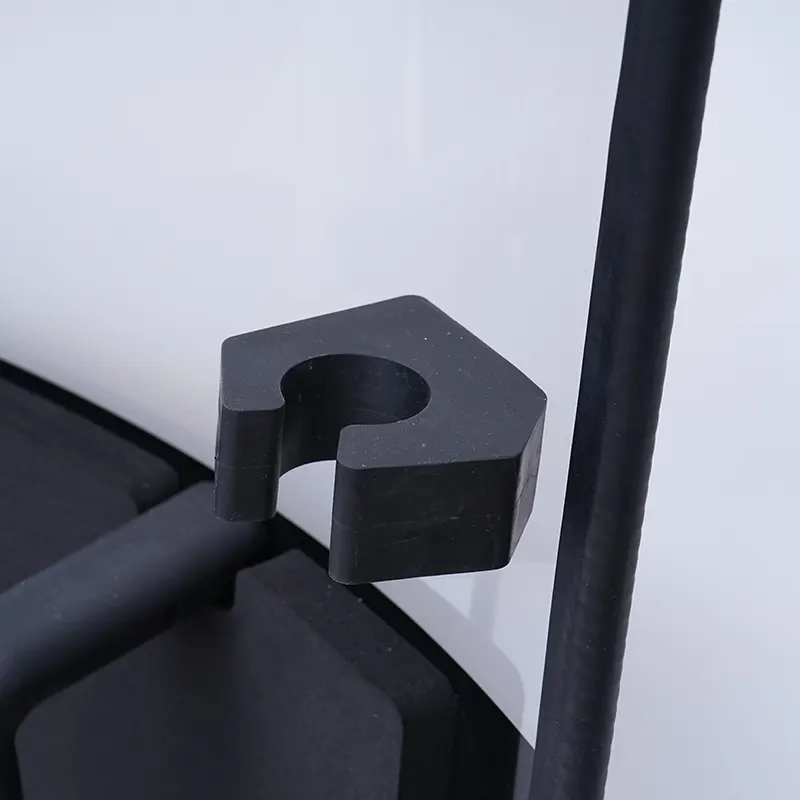

6. Side baton mounting clips enable quick access to auxiliary equipment, improving single person disposal efficiency.
7. 3.8 kg balanced weight with centered gravity distribution, lowers arm holding burden and adapts to long hour formation duty.
Bordered Anti Riot Shield applies to standard riot control formation operations, large event security duty, mass incident management, venue order maintenance and routine patrol tasks. Its reinforced edge and full transparency design fits scenarios requiring team coordinated defense and continuous situational observation.
The shield panel is integrally hot formed from high quality polycarbonate sheet with precise thickness control. The formed panel goes through annealing treatment to eliminate internal stress and improve dimensional stability. Panel edges are polished smooth and fitted with metal wire embedded PVC rubber border via high temperature pressing process for tight adhesion. Rear dual grips and forearm pad are fixed with reinforced rivets, and side baton clips are firmly installed on the shield body.
Each finished Bordered Anti Riot Shield undergoes light transmittance test, border firmness inspection and impact resistance sampling check before delivery. Standard packaging is 4 pieces per carton for bulk transportation.
Q: What is the function of the reinforced border on the shield?
A: The metal wire embedded PVC rubber border can reinforce edge impact resistance, reduce the risk of edge chipping under impact, and improve the overall wear durability of the shield.
Q: How is the visual effect of this transparent shield?
A: The shield adopts full transparent polycarbonate panel with 80 percent minimum light transmittance, which can provide unobstructed forward vision and support clear situational observation during duty.
Q: Is this shield suitable for team formation use?
A: Yes, this rectangular shield can be connected side by side seamlessly to form a continuous shield wall, which is suitable for team coordinated defense scenarios.
Q: Will holding this shield for a long time cause obvious arm fatigue?
A: This shield is designed with dual ergonomic grips and adjustable forearm strap, which can evenly distribute holding force and effectively reduce arm fatigue during long duty shifts.
