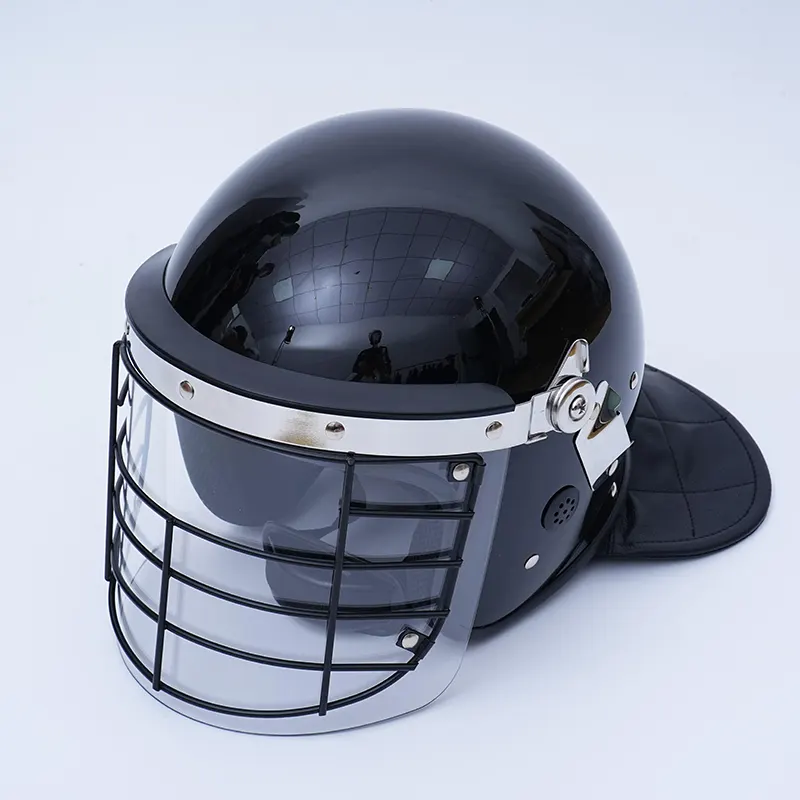

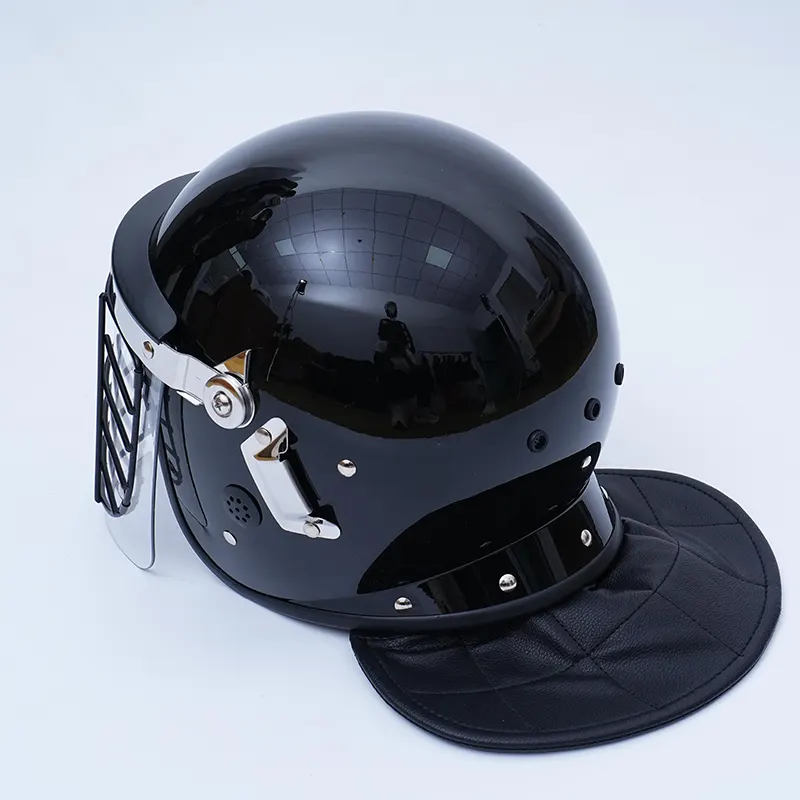

Developed for high intensity riot control and on site disposal tasks, this Metal Grille Anti Riot Helmet addresses common limitations of single layer face shield designs: insufficient resistance to blunt objects and thrown projectiles, easy cracking under heavy impact, and short service life in harsh outdoor environments. Unlike standard PC face shield helmets, its dual layer structure disperses impact force through the metal grille first, protecting the inner PC shield and improving overall protective performance.
The core protective system consists of a high strength engineering plastic shell, a carbon steel protective grille, a high transparency PC face shield, and a soft neck guard. The metal grille is treated with rust resistant technology to adapt to humid and changeable outdoor conditions. The internal suspension system with breathable padding ensures even weight distribution and reduces wearing fatigue during long deployments. The quick release chin strap allows for fast removal in emergency situations. This helmet is built for confrontational scenarios with high impact risk, balancing protective strength, clear vision and wearing comfort.
|
Parameter Item |
Specification |
|
Main Shell Material |
High strength impact resistant ABS and HDPE engineering plastic blend |
|
Face Shield Material |
High transparency impact resistant PC material |
|
Protective Grille Material |
Carbon steel with rust resistant treatment |
|
Shell Thickness |
Approximately 3.5 mm |
|
Face Shield Thickness |
Approximately 2.0 mm |
|
Overall Dimensions |
30 cm by 24 cm by 22 cm |
|
Adjustable Head Circumference |
54 cm to 62 cm |
|
Strap Width |
25 mm |
|
Unit Net Weight |
Approximately 1.6 kg |
|
Unit Gross Weight including inner packaging |
Approximately 1.8 kg |
|
Quantity Per Carton |
10 pieces |
|
Outer Carton Dimensions |
60 cm by 40 cm by 35 cm |
|
Carton Gross Weight |
Approximately 19 kg |

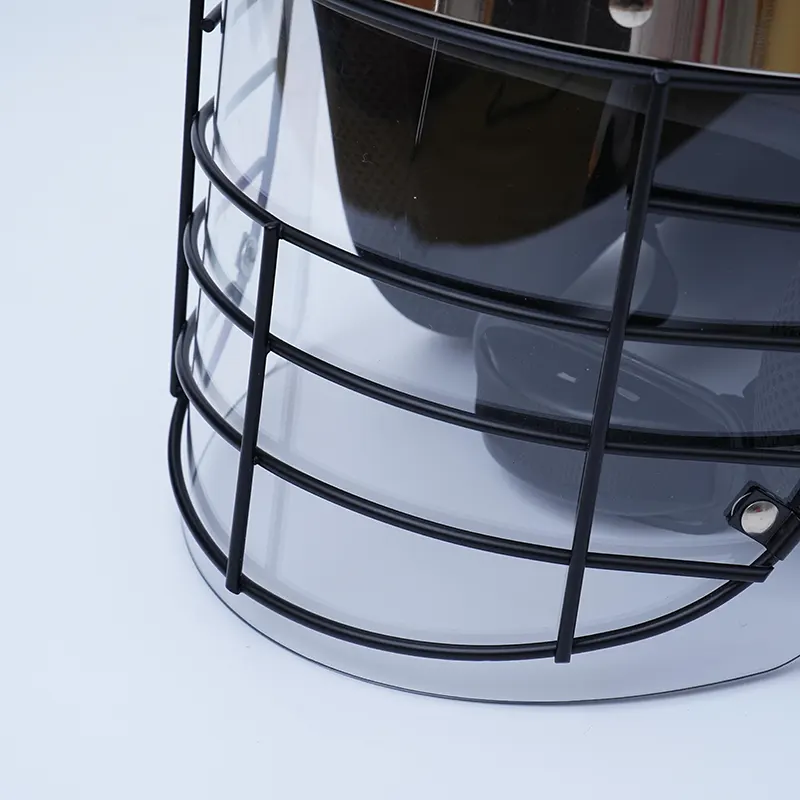

For facial protection, the dual layer structure with carbon steel grille and PC face shield effectively improves blunt impact resistance. The outer metal grille bears and disperses the first wave of impact force, reduces direct impact on the inner PC shield, and lowers the risk of shield cracking under heavy impact. The inner high transparency PC shield maintains a clear field of view while blocking splashed liquids and fine flying debris.

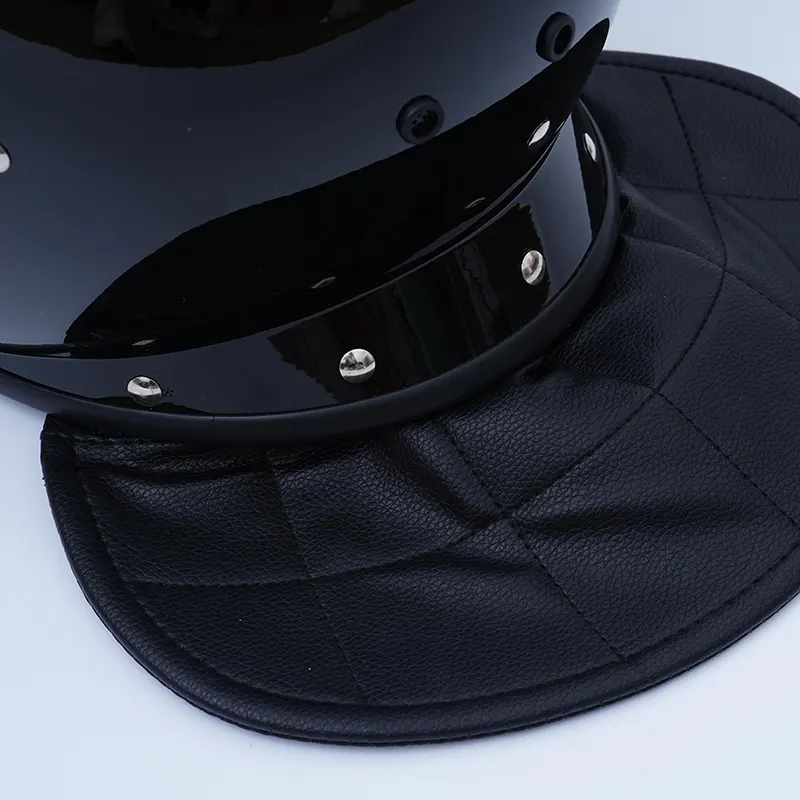

For head protection, the 3.5 mm thick blended engineering plastic shell fully wraps the head, effectively disperses and absorbs impact energy. The matching soft neck guard extends the protective coverage to the cervical area, reducing rear exposure during duty.

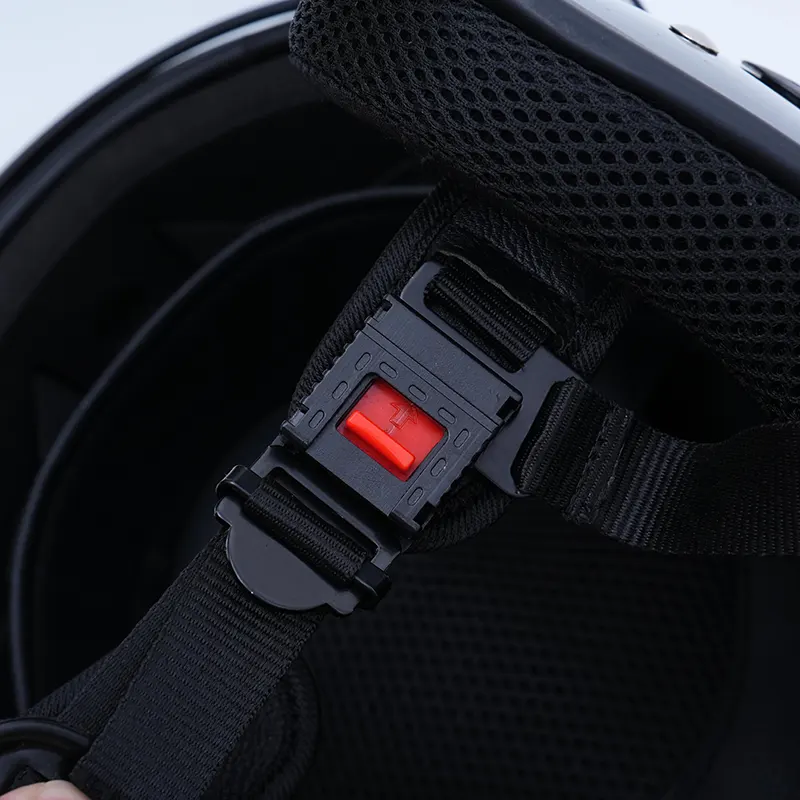

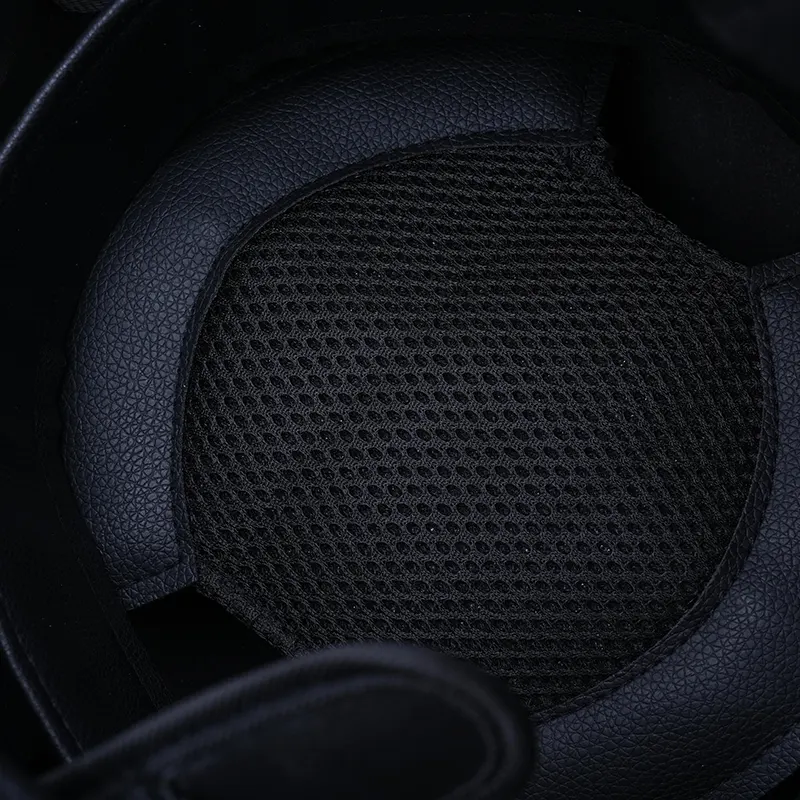

For wearing adaptation, the adjustable head circumference ranges from 54 cm to 62 cm, fitting most adult head sizes. The breathable mesh lining and ergonomic suspension structure reduce heat buildup and wearing fatigue during long time work. The 25 mm wide webbing strap with quick release buckle ensures firm wearing and supports fast removal in emergency situations.
For outdoor durability, the metal grille is treated with rust resistant technology, which can adapt to humid and changeable outdoor environments and prolong the service life of the helmet.
Metal Grille Anti Riot Helmet is primarily used by frontline law enforcement and security personnel during high intensity riot control, mass incident disposal, and high risk area security tasks. Its reinforced structure is especially suitable for scenarios with thrown hard objects, close quarter impact and blunt force risks.
The shell of the helmet is integrally injection molded from high strength ABS and HDPE material with a uniform thickness of 3.5 mm, ensuring consistent impact resistance of each part.
The protective grille is welded from carbon steel and treated with rust resistant technology, with stable structure and good corrosion resistance. The welding points are smooth and free of burrs, which will not scratch the inner shield or the wearer.
The 2.0 mm thick PC face shield is precision formed with polished edges, featuring high light transmittance and no edge burrs. The internal suspension system is assembled with 25 mm wide webbing straps and a quick release buckle, paired with breathable mesh padding to improve wearing comfort.
Each finished helmet undergoes head circumference fit test and face shield impact resistance test before delivery. Units are packed 10 pieces per carton with outer carton dimensions of 60 cm by 40 cm by 35 cm for bulk transportation.
Q: Will the metal grille affect the field of view when wearing the helmet?
A: The metal grille adopts a sparse grid design, which will not block the overall line of sight when used with the inner transparent PC face shield, and can ensure normal observation and operation of the wearer.
Q: How to maintain the metal grille part of the helmet?
A: It is recommended to wipe the metal grille with a dry soft cloth regularly to remove surface dust and stains. Avoid long time immersion in water to maintain the rust resistant effect and extend service life.
Q: Can the outer metal grille be replaced separately after damage?
A: The metal grille is fixed to the helmet shell through connecting parts. For bulk orders, we can provide matching replacement accessories. You can contact us for specific details.
Q: Is this helmet suitable for use in humid outdoor environments?
A: The metal grille of this helmet is treated with rust resistant technology, which can adapt to humid and changeable outdoor environments and is suitable for outdoor duty in various weather conditions.
